PRODUCT DESCRIPTION

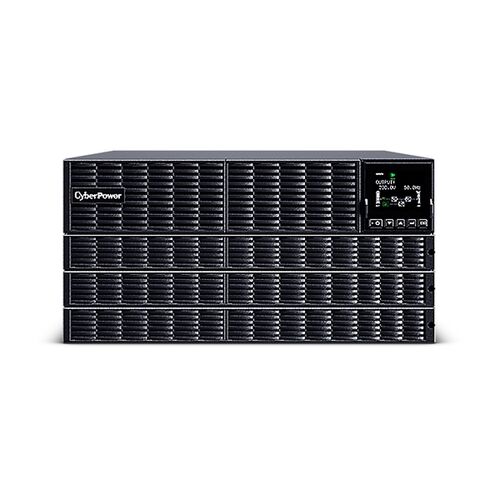

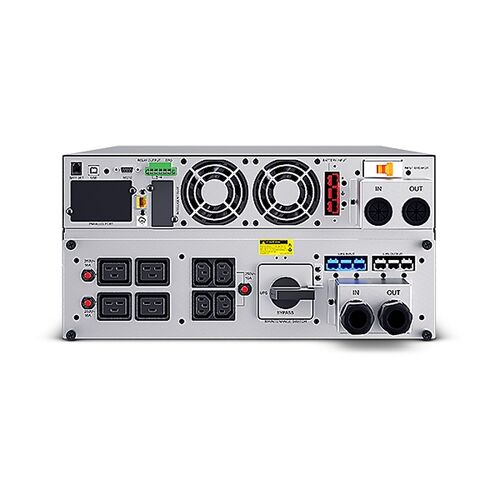

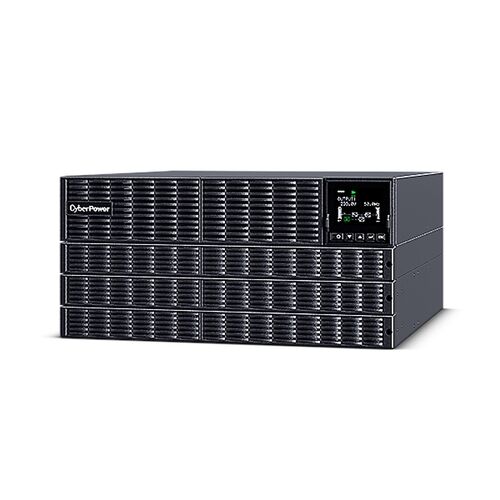

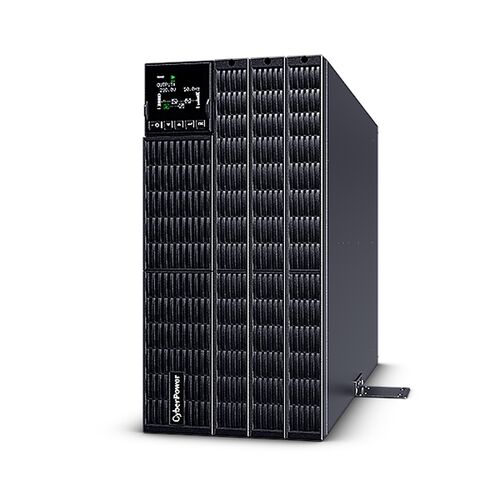

CP 10000VA/10000W Rack UPS
CP 10000VA/10000W Rack UPS
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount / Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 98%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage ( Vac ): 230
- Input Voltage Range ( Vac ): 110 - 300
- Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 144 Vac | 0-75% Load for 145 - 179 Vac | 0-100% Load for 180 - 300 Vac
- Input Frequency ( Hz ): 50 - 60Hz
- Input Frequency Detection: Auto-sensing
- Rated Input Current ( A ): 49.5
- Input Power Factor: 0.99
- Input Connector Type: Hardwire Terminal Block
- Capacity (VA): 10000
- Capacity (Watts): 10000
- On Battery Waveform: Pure Sine Wave
- On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
- Overload Protection: Internal Current Limiting Circuit Breaker Fuse
- Overload Protection (Line Mode): 105-130% Load for 10 sec >130% Load for 1.5 sec
- Overload Protection (Battery Mode): 105-130% Load for 10 sec >130% Load for 1.5 sec
- Overload Protection (Bypass Mode): 110-120% Load for 30 min 120-130% Load for 2 min 130-150% Load for 15 sec >150% Load Immediately
- Harmonic Distortion (Linear Load): THD?1.5%
- Harmonic Distortion (Non-linear Load): THD?3%
- Internal Bypass: Automatic Bypass / Manual Bypass
- Maintenance Bypass: Yes
- Outlet(s) - Total: 9
- Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 | IEC C19 x 4
- Typical Transfer Time ( ms ): 0
- Runtime at Half Load ( min ): 11.2
- Runtime at Full Load ( min ): 2.9
- Typical Recharge Time ( Hours ): 4
- Maximum Charging Current ( A ): 4
- Adjustable Charging Current ( A ): 1 - 4
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Compatible Extended Battery Module (EBM): BPS240V9ART3U
- Max. EBM Quantity ( pcs ): 10
- Surge Suppression ( Joules ): 1335
- EMI/RFI Filtration: Yes
- LCD Orientation: Rotatable LCD – Manual
- Tiltable LCD Panel: 15 degrees
- HID Compliant USB Port(s): 1
- Serial Port: RS232
- Dry Contact (with Relay): Yes
- Emergency Power Off (EPO) Port: Yes
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 213.5 x 661mm
- Weight: 80kg
- Installed Rack Height ( U ): 5
- Online Thermal Dissipation ( BTU/hr ): 2047
- Audible Noise at 1.0M from Surface of Unit: 62 dBA
- Certifications: CE / RoHS
Features:
- Online (Double Conversion) UPS Topology
- High Output Power Factor
- Overload Protection
- Maintenance Bypass Switch
- Extended Battery Module Auto-detection
- User-replaceable Batteries
- Tiltable LCD Panel
- Relay-type Dry Contact
- SNMP/HTTP Remote Management Capability (Optional)
- Rack/Tower Convertible Configurations
- ECO Mode
- Pure Sine Wave Output
- Zero Transfer Time
- Extended Battery Module (EBM)
- Adjustable Charging Current
- Color LCD Panel
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
- Built-in Remote Cloud Card by Ethernet
What's in the box?
- 1 x OLS10KERT5U UPS
- 1 x External Maintenance Bypass PDU
- 1 x Rackmount Rail
- 1 x Rackmount Ears
- 1 x Rail Kit
- 1 x Screw Kit
- 1 x Power Cord
- 1 x USB Cable
- 1 x Phone Line
- 1 x User Manual
