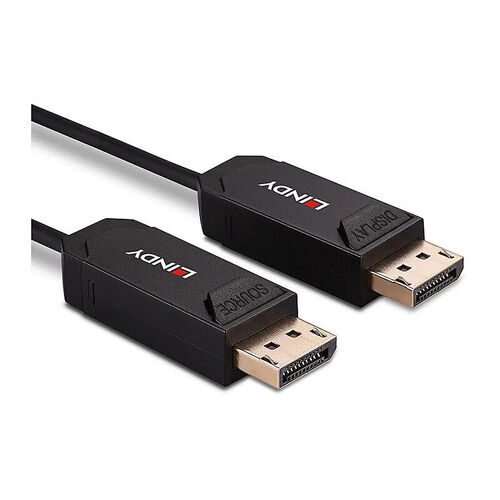

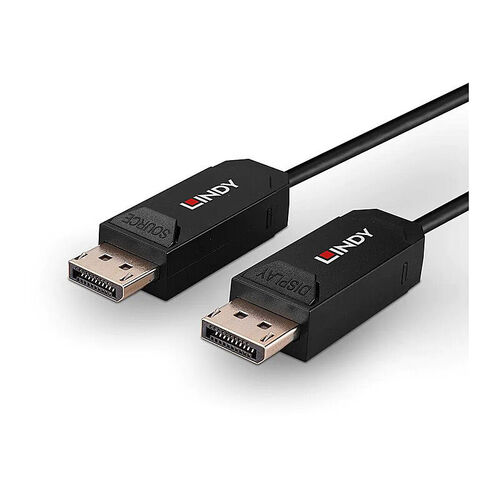

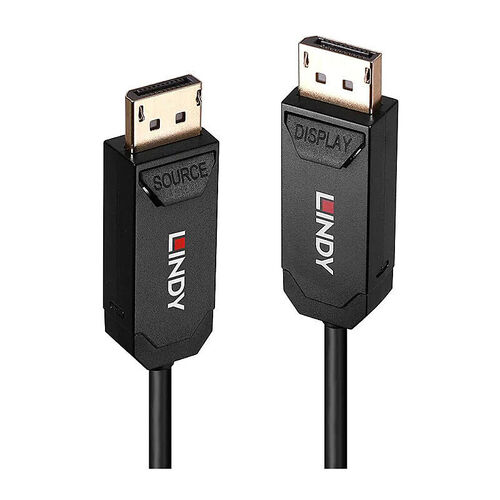

Lindy 10m Fibre Optic Hybrid DisplayPort 2.0 UHBR10 Cable
Features
- Combines copper and fibre optic cable for a hybrid long distance DisplayPort connectivity solution
- Supports resolutions up to 4K@144Hz 8K@60Hz
- DP2.0 standard with UHBR10 support 40Gbps bandwidth (4 lanes 10Gbps per channel)
- Flexible and robust cable structure for any kind of installations
- 2-Year Warranty
Specifications
Connectors
- Connector A: DisplayPort (Male)
- Connector B: DisplayPort (Male)
- Housing Material: PVC
- Connector Plating: Gold Plated
- Pin Construction: Gold Plated
- Pin Plating: Gold Plated
- Dimensions (approx.) WxDxH: DP Connector: 19.8x47.8x12mm (0.78x1.88x0.47in)
Cable Construction
- Length: 10m (32.81ft)
- Standard: DisplayPort 2.0
- Colour: Black
- Type: Round
- Jacket Diameter: 4.0mm (0.16in)
- Jacket Material: PVC
- Conductor Material: Fiber and Copper
- Conductor Gauge: 24AWG
- Shielding: -
Specifications
- Supported Bandwidth: 40Gbps
- Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit 3840x2160@144Hz 4:4:4 10bit
- Nominal Attenuation: ≤10dB/km@850nm ≤8dB/km@1300nm
- Minimum Bend Radius: 50mm (1.97in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Miscellaneous
- Packaging Type: Carton Box
- Warranty (Years): 2
- Certificated: CE UKCA FCC RoHS REACH & California Proposition 65
DELIVERY INFORMATION
All orders are despatched ASAP from distribution centres in Sydney, Melbourne, Brisbane, Adelaide & Perth. As a general guide, deliveries to major cities and towns will arrive in 1 - 3 working days whilst it could take up to 5 working days for remote areas. A dispatch note will be sent to your registered email address for tracking. The store pickup is not allowed.
PAYMENT OPTION
We accept payment by Visa, Mastercard, American Express, Paypal, Direct Bank Deposit, Internet Banking and Cheque. Our site uses 256bit encryption ensuring your credit card details remain safe. The credit card details are used for the current order processing only and are not stored on our site in any form.
QUALITY GUARANTEE
This product is supplied with the manufacturer's warranty. The major manufacturers provide the 'Technical Support' lines for troubleshooting or technical support and will deal the Manufacturer's Warranty Claim for the repair or replacement. If the manufacturer directs you to return the product back to us, please ask for a support case number and we will arrange the return. Please contact us if you are unsure of what number to call.
ORDER IT NOW!
Click the "Add to Cart" button above to add the item to your shopping cart.
| Brand: | Lindy |
| Model: | 38520 |
| Type: | DisplayPort Cable |
| Condition: | New |
