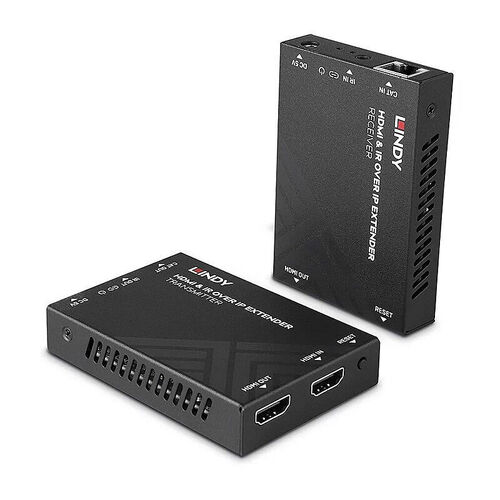

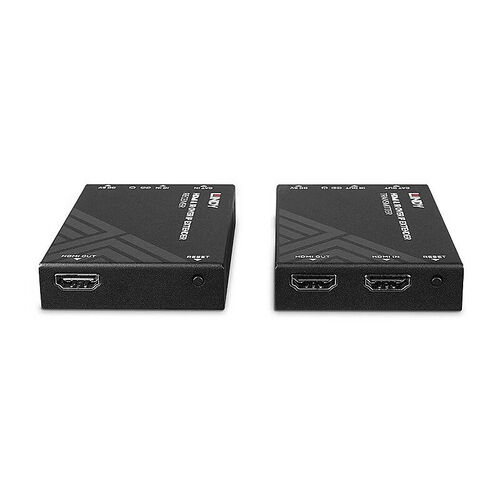

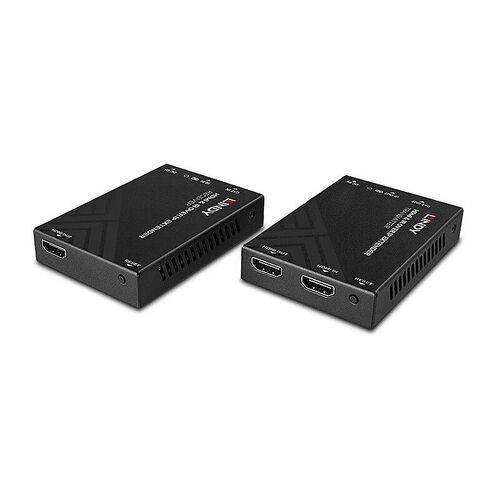

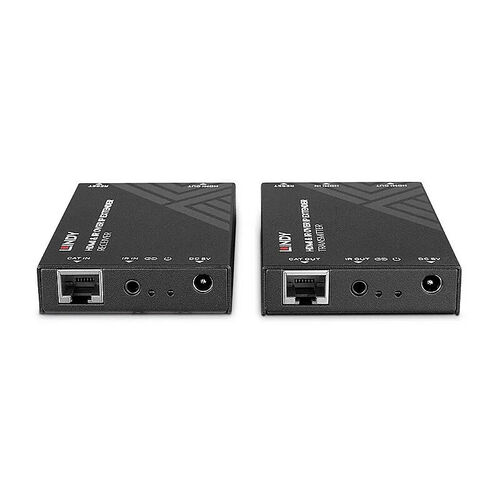

Lindy HDMI & IR over IP Extender Kit, Includes Transmitter & Receiver
Features
- Distribute HDMI signals 1-1 or 1-many as part of a networked installation
- Supports resolutions up to 1920x1080@60Hz
- Supports IR and HDMI loop-out port on the transmitter
- Add additional Receivers (38399) to the network for larger scale distribution
- 2 year warranty
Specifications
- AV Interface: HDMI
- Interface Standard: HDMI 1.3
- Supported Bandwidth: 6.75 Gbps
- Maximum Distance: 150m (492.12ft)
- Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
- HDCP Support: 1.4
- EDID: Pass Through
- Supported Audio: 2 Channel PCM
- IR Support: 20-60 kHz
- Transmission Protocol: IP (H.265 video compression)
- Transmission Medium: 1 x Cat.5e/6
- Chipset: SSC337DE - SSD203D
- Special Features: HDMI Loop Out port
Connectors
- Transmitter Input: HDMI (Female)
- Transmitter Output: HDMI (Female) RJ45 (Female) IR (Female)
- Receiver Input: RJ45 (Female) IR (Female)
- Receiver Ouput: HDMI (Female)
- Power: 5.5/2.1mm DC socket
Physical Properties
- Dimensions WxHxD: 88x61.2x16.5mm (3.46x2.41x0.65in) per unit
- Housing Material: Metal
- Nett Weight: 0.53kg (1.17lb)
- Operating Temperature: -10°C - 50°C (14°F - 122°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 5VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)
- Gross Weight: 0.73kg (1.61lb)
- Warranty (Years): 2
- Product Compliance: CE UKCA FCC RoHS REACH & California Proposition 65
