Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station, Single Display 8K, Dual Display 4K, 100W C
Click image(s) to enlarge

Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station, Single Display 8K, Dual Display 4K, 100W C

Brand: Lindy
Model: 43392
Type: Laptop Dock
Condition: New
$204.90 inc GST
SAVE $74.10 OFF RRP $279.00
In Stock

Shipping: Enter Postcode to Calculate


PRODUCT DESCRIPTION

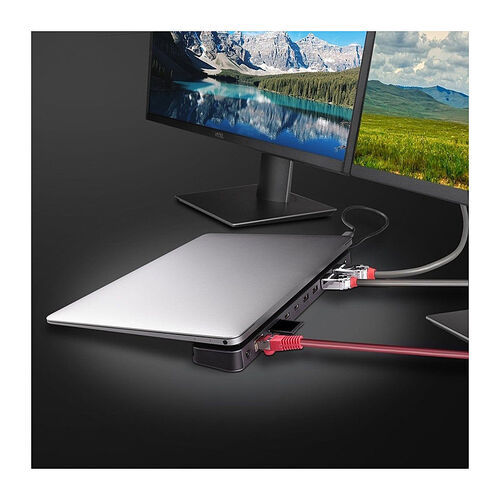

Lindy DST-Mini XT 810, USB-C Laptop Docking Station

Features:

  • Connects an HDMI and/or a DisplayPort display USB peripherals and power over a single cable
  • Supports 8K 30Hz for a single display or 4K 60Hz for two displays (MST)
  • Integrated 3 port USB SuperSpeed 10Gbps Hub (2 x Type A 1 x Type C)
  • USB Power Delivery capable up to 100W
  • 2 year warranty

Specifications:

  • Interface: USB Type C to 1x HDMI / 1x DP/ 2x USB Type A / 2x USB Type C / 1x RJ45 / 1x SD / 1x microSD / 1x 3.5mm Audio
  • Interface Standard: USB 3.2 / 3.1 Gen 2 & Gen 1 Gigabit LAN HDMI 2.1 DP 1.4a Audio (combo)
  • Supported Bandwidth: 10 Gbps 10/100/1000 Mbps
  • Maximum Input Resolution: 8K 7680x4320 30Hz
  • Maximum Output Resolution:
    • Single Display: 7680x4320 30Hz 3840x2160 120Hz
    • Dual Displays: 3840x2160 60Hz (each)
  • Chipset: VMM6210 VL822 GL3510 GL3224 RTL8153B ALC4032 VL102
  • Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support; Windows macOS Linux Android ChromeOS.
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • HDCP Support: HDCP 1.4 & 2.2
  • Supported Audio: Sampling rate 192kHz/24bit
  • Separate Audio Ports: 1x Audio combo port 3.5mm
  • Special Features: DisplayPort Alternate Mode MST Extended display support for Windows Battery Charging 1.2 (only USB 3.2 Gen 2 Type C port) supports simultaneous card reading PXE (Preboot Execution Environment) and Wake on LAN (WOL) Supports MAC Address Pass-through (this feature is dependent upon the compatibility of the hardware used in each set up)

Connectors

  • Inputs: 1x USB Type C (Male)
  • Outputs: 1x HDMI (Female) 1x DisplayPort (Female) 1x RJ45 (Female) 2x USB Type A (Female) 2x USB Type C (Female) / 1x SD slot 1x microSD slot 1x 3.5mm Audio (Female)
  • Power: 1 x USB Type C (Female) PD port

Physical Properties

  • Dimensions WxDxH: 270x45x16mm (10.63x1.77x0.63in)
  • (Fixed) cable length: 360mm (14.17in)
  • Housing Material: Aluminium
  • Net Weight: 0.23kg (0.51lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 0% - 85% RH (non-condensing)
  • Power Requirements: 15W
  • Colour: Anthracite

Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 365x93x35mm (14.37x3.66x1.38in)
  • Gross Weight: 0.37kg (0.82lb)
  • Warranty (Years): 2
  • Product Compliance: CE FCC REACH & RoHS CP65
