PRODUCT DESCRIPTION

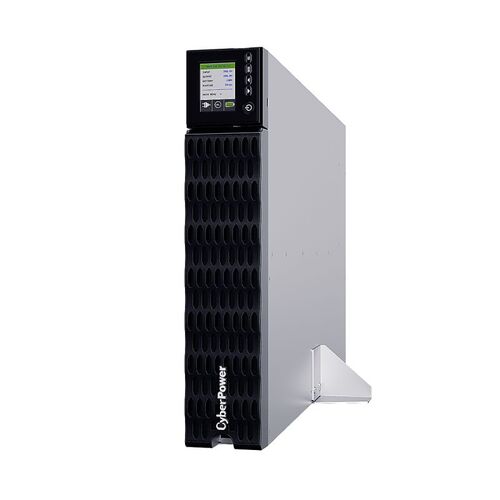

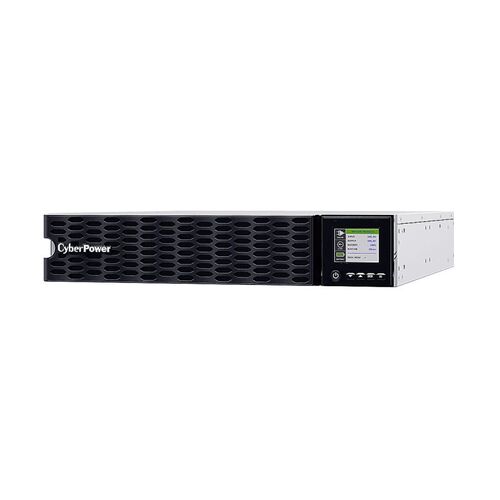

CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency and surveillance systems. The UPS adopts double-conversion topology.
CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency and surveillance systems. The UPS adopts double-conversion topology.
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount, Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 97%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
- Input Voltage Range ( Vac ): 200 - 240
- Adjustable Voltage Range ( Vac ): 0-25% Load for 120 - 139 Vac | 0-50% Load for 140 - 159 Vac | 0-75% Load for 160 - 179 Vac | 0-100% Load for 180 - 280 Vac
- Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
- Input Frequency Detection: Auto-sensing
- Rated Input Current ( A ): 32
- Input Power Factor: 0.99
- Input Connector Type: Hardwire Terminal Block
- Output Capacity (Watts): 6000
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
- Output Voltage Setting: Configurable
- On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
- Output Frequency Setting: Configurable
- Power Factor: 1
- ECO Mode Voltage Tolerance: ± 10 % | ± 15 %
- Overload Protection: Internal Current Limiting, Circuit Breaker
- Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
- Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
- Overload Protection (Bypass Mode): Circuit Breaker
- Crest Factor: 3 : 1
- Harmonic Distortion (Linear Load): THD?3%
- Harmonic Distortion (Non-linear Load): THD?5%
- Internal Bypass: Automatic Bypass, Manual Bypass

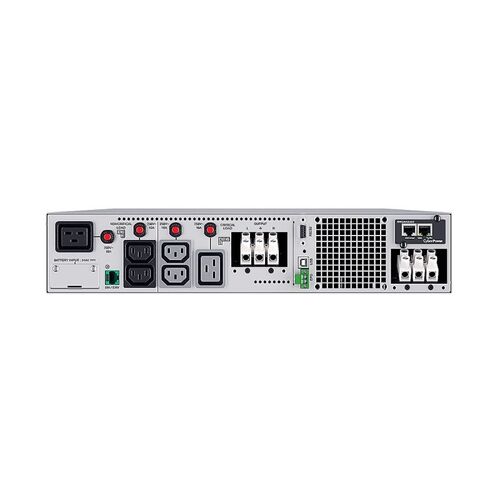

- Outlet(s) - Total: 7
- Outlet Type: IEC C13 x 4 | IEC C19 x 2 | Hardwire Terminal Block x 1
- Outlet(s) - Battery & Surge Protected: 7
- Outlet(s) - Critical Load (CL): 4
- Outlet(s) - Non-Critical Load (NCL): 3
- Typical Transfer Time ( ms ): 0
- Runtime at Half Load ( min ): 4.9
- Runtime at Full Load ( min ): 1.4
- Typical Recharge Time ( Hours ): 4
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- Built-in Battery Management Module: Yes
- User-replaceable: Yes - Qualified Personnel Only
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Replacement Battery Pack: RBP0144
- RBP Quantity ( pcs ): 1
- Battery Quantity (Each RBP) ( pcs ): 12
- Battery Voltage (Each RBP) ( V ): 144
- Compatible Extended Battery Module (EBM): BPE144VL2U01 (Built-in Charger)
- Max. EBM Quantity ( pcs ): 10
- Surge Suppression ( Joules ): 2430
- EMI/RFI Filtration: Yes
- LCD Orientation: Rotatable LCD Automatic, Rotatable LCD via Setting
- Tiltable LCD Panel: 18°
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
- HID Compliant USB Port(s): 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
- Management Cable ( pcs ): USB Cable x1, Serial Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 86.5 x 720mm
- Rack-mounted Dimensions: 433 x 86.5 x 685mm (Without the dimension of front panel)
- Weight: 42kg
- Certifications: CE, EAC, RCM
Features:
- Online (Double Conversion) UPS Topology
- High Density Design
- High Output Power Factor
- Tiltable LCD Panel
- Surge and Spike Protection
- Generator Compatible
- Hot-swappable Batteries
- Smart Battery Management (SBM)
- SNMP/HTTP Remote Management Capability
- ECO Mode
- Color LCD Panel
- Quick Charging Technology
- Automatically rotatable LCD
- Critical/Non-critical Load Outlets
- Battery Management Technology
- Extended Battery Module (EBM)
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
