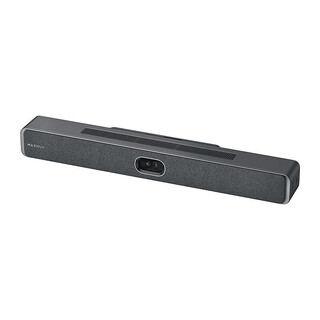

Maxhub Xbar V50 MS Videobar
Click image(s) to enlarge

Maxhub Xbar V50 MS Videobar

Brand: Maxhub
Model: V50
Type: Videobar
Condition: New
$4,810.80 inc GST
In Stock

Shipping: Enter Postcode to Calculate


PRODUCT DESCRIPTION
MAXHUB XBar V50 Dual-eyes 4K Microsoft Teams Rooms MDEP Videobar Android system 8GB RAM 64GB ROM / Dual-eyes 100MP 4K Camera HFOV 125? / AP30 x1

Features

  • 100MP Camera System: Dual-lens camera with 125° HFOV. Ultra-high-resolution camera system redefines image clarity and spatial adaptability
  • BYOD Mode: Connect to your PC with a single USB cable for BYOD meeting
  • AI-Powered Technology: Auto Framing Speaker Tracking Smart Gathering Intelligent Focus
  • AI Noise Reduction: Built-in 12 MEMS microphone array with AI noise reduction
  • Studio-Grade Dual Speakers: Dual 15W Stereo Sound Full Frequency
  • Cloud Device Management: Remotely monitor device status through cloud-based service (MAXHUB Pivot) via an internet connection

Specifications

Package Contents

  • XBar V50 (With Standard Accessories) × 1

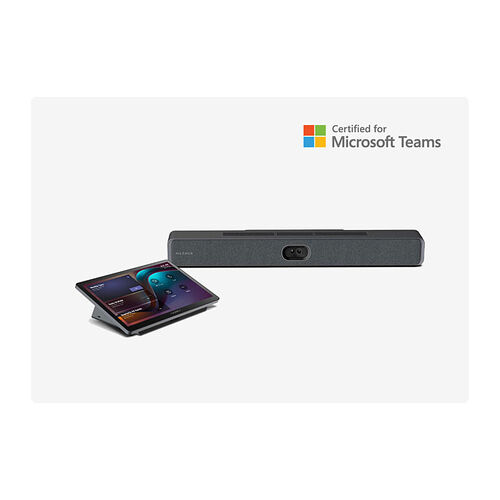

  • Panel AP30 (With Accessories) × 1

Environmental Condition

  • Operating Temperature: 0°C ~ 40°C / 0°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Operating Humidity: 10% ~ 90% RH
  • Storage Humidity: 10% ~ 90% RH
  • Altitude: Below 5000 m

Physical Specification

  • Package Dimensions (L×W×H): 770 × 257 × 275 mm / 30.3 × 10.1 × 10.8 in
  • Gross Weight: 9.98 kg / 22.0 lb

Content Sharing

  • Teams (In Meeting): 1080p@30
  • Local Sharing (Type-C): 4K@30
  • Local Sharing (HDMI): 4K@30

Device Management

  • Microsoft Device Management Platform (Teams Admin Center / Intune / Pro Management Portal)
  • MAXHUB Pivot

XBar V50

Operating System

  • MDEP Supported
  • Android 13

Camera

  • Camera Quantity: 2
  • Pixel: 50MP × 2
  • Sensor: 1/1.55 inch
  • Aperture: F/2.4
  • Resolution & Frame Rate:
    • H.264 / MJPEG: 3840×2160 2560×1440 1920×1080 1280×720 1024×576 960×540 800×600 640×360
    • YUY2: 1920×1080 1280×720 640×360
  • Zoom: 6x Digital Zoom
  • Field of View: 130° (D) 125° (H) 50° (V)
  • Privacy Shutter: Electric and automatic lens shutter

AI Features (Camera)

  • Auto Framing
  • Speaker Tracking
  • Intelligent Focus
  • Smart Gathering
  • Video Fence
  • Audio Fence

Input/Output Ports

  • USB 3.0 Type-B × 1 (PC connection)
  • USB 2.0 Type-A × 1 (debug/update)
  • HDMI Out × 2 (up to 4K@60Hz CEC supported)
  • HDMI In × 1 (up to 4K@60Hz)
  • Audio In × 1 (third-party input)
  • Audio Out × 1 (third-party output)
  • RJ45 (Internet) × 1
  • RJ45 (M Link) × 1 (expansion device)
  • DC In × 1 (19V power supply)

Power Adapter

  • AC Input: 100–240 V
  • DC Output: 19V / 4.5A

Audio

Speaker
  • Quantity: 2
  • Sound Channel: 2.0
  • Total Power: 15W + 15W
  • Max Sound Pressure: 83 dB SPL@1W/1M
  • Frequency Range: 80 Hz ~ 20 KHz
Microphone
  • Quantity: 12-mic array
  • Pickup Range: 8 m
  • Frequency Range: 20 Hz ~ 16 KHz
  • Sensitivity: -36 ± 1 dBFS
  • Sampling Rate: 48 KHz
  • Expansion: Supports 2 expansion microphones
AI Features (Audio)
  • Noise Reduction
  • Echo Cancellation
  • Anti-Reverberation
  • AEC (Acoustic Echo Cancellation)
  • ANS (Automatic Noise Suppression)
  • AGC (Automatic Gain Control)
  • Full-duplex

Standard Accessories

  • Power Adapter × 1
  • AC Cable (1.5 m / 4.9 ft) × 1
  • HDMI Cable (3 m / 9.8 ft) × 2
  • Ethernet Cable (3 m / 9.8 ft) × 1
  • Mounted Components (ADA Standard) × 1

Physical Specification

  • Product Dimensions (L×W×H): 650.8 × 76.6 × 95.7 mm / 25.6 × 3.01 × 3.77 in
  • Package Dimensions (L×W×H): 750 × 136 × 246 mm / 29.5 × 5.4 × 9.7 in
  • Net Weight: 2.8 kg / 6.17 lb
  • Gross Weight: 6.0 kg / 13.23 lb

Network

  • Wi-Fi: Wi-Fi 6 2×2 MIMO
  • Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax
  • Working Band: 2.4 GHz + 5 GHz
  • Bluetooth: 5.2 + BLE
  • Network Speed: 1000 Mbps

Panel AP30

Display

  • Size: 11.6 inch
  • Resolution: 1920 × 1080
  • Refresh Rate: 60 Hz
  • Backlight Unit: ELED
  • Brightness With Glass: 250 nits (Min.) 300 nits (Max.)
  • Life Time: ≥ 20000 hours

Touch System

  • Type: Capacitive touch
  • Surface Treatment: Anti-fingerprint Anti-glare

Sensor

  • Motion Sensor: PIR sensor for automatic wake-up

Accessories

  • Type-C Cable (1.5 m / 4.92 ft) × 1
  • Ethernet Cable (7.5 m / 24.61 ft) × 1
  • Screwdriver × 1
  • Power Adapter × 1
  • AC Cable (1.5 m / 4.9 ft) × 1

Input/Output Ports

  • RJ45 (INTERNET) × 1
  • RJ45 (EXT) × 1
  • DC In × 1
  • Type-C (INGEST) × 1
  • USB 2.0 (Pairing Wireless Dongle) × 1

Power

  • Power Input: 19V DC 4.5A
  • Power Output: Type-C PD 65W (Max.)

Physical Specification

  • Product Dimensions (L×W×H): 278 × 164 × 82 mm / 11 × 6.4 × 3.2 inch
  • Product Weight: 1.16 kg / 2.56 lb
  • Package Dimensions (1 pcs): 570 × 246 × 101 mm
  • Package Dimensions (4 pcs): 590 × 440 × 280 mm
  • Package Weight (1 pcs): 3.12 kg

Operating System

  • MDEP Supported
  • Android 13
