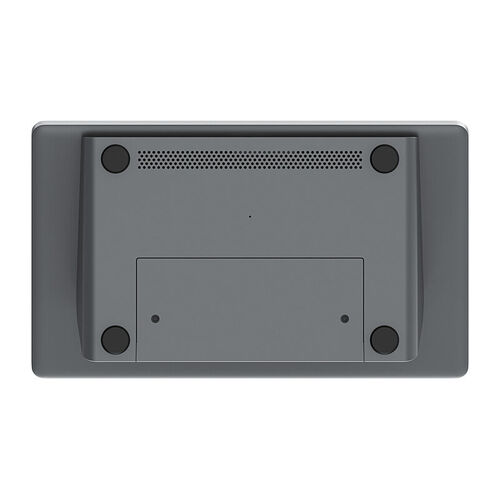

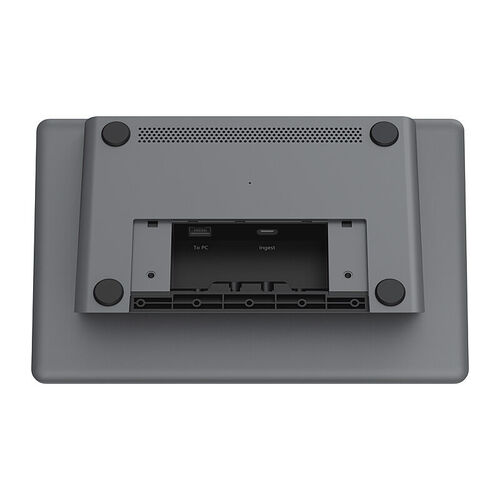

Maxhub Universal Touch Console [TCP33T]
Click image(s) to enlarge

Maxhub Universal Touch Console [TCP33T]

Brand: Maxhub
Model: TCP33T
Type: Touch Controller
Condition: New
$1,626.20 inc GST
In Stock

Shipping: Enter Postcode to Calculate


PRODUCT DESCRIPTION
MAXHUB Universal Touch Console

Features

  • One‑Cable Technology: Easy and flexible installation with a single cable between the IFP and touch console
  • Motion Sensor: Automatically sleeps or wakes the room display based on inactive/active HDMI video signals to save energy
  • Content Sharing: Share content on the IFP using a USB‑C cable
  • PoE Power: Supports standard power supply and data transmission

Specifications

  • TCP33T Universal Console: × 1
  • UD20A Interface Converter: × 1
  • PoE Adapter: × 1
  • Package Dimension (4 pieces): 590 × 440 × 280 mm / 23.23 × 17.32 × 11.02 inch
  • Package Weight: 4.6 kg / 10.14 lbs

Display

  • Size: 11.6 inch
  • Resolution: 1920 × 1080
  • Refresh Rate: 60 Hz
  • Back Light Unit: ELED
  • Brightness With Glass: 250 nits (Min.) 300 nits (Max.)
  • Lifespan: ≥ 20000 hours

Touch System

  • Type: Capacitive touch
  • Surface Treatment: Anti-fingerprint Anti-glare

Sensor

  • Motion Sensor: PIR sensor for automatic wake-up
  • Ultrasound Emitter: Supported

Environmental Condition

  • Operating Temperature: 0°C ~ 40°C / 0°F ~ 104°F
  • Operating Humidity: 10% ~ 90% RH
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Storage Humidity: 10% ~ 90% RH
  • Altitude: Below 5000 m

Physical Specification

  • Product Dimension (L × W × H): 278 × 164 × 82 mm / 11 × 6.4 × 3.2 inch
  • Product Weight: 1.16 kg / 2.56 lbs

I/O Port

  • USB‑C (Content Sharing): × 1
  • RJ45: For connecting PoE adapter or MAXHUB XBoard V7 Teams Room
  • Kensington Slot: × 1

Standard Accessories

  • Power Cord: × 3
  • Ethernet Cable (7.5 m / 24.6 ft): × 2
  • UD20A Interface Converter: × 1
  • PoE Adapter (Output: 54V 0.56A 30.24W): × 1
  • Type‑C Cable (1.8 m / 5.9 ft): × 1
  • Quick Start Guide: × 1
  • Screwdriver: × 1
